Outdoor Tennis 1 Court Hurricane Rated LED Lighting & Pole Package 8 poles 8 fixtures

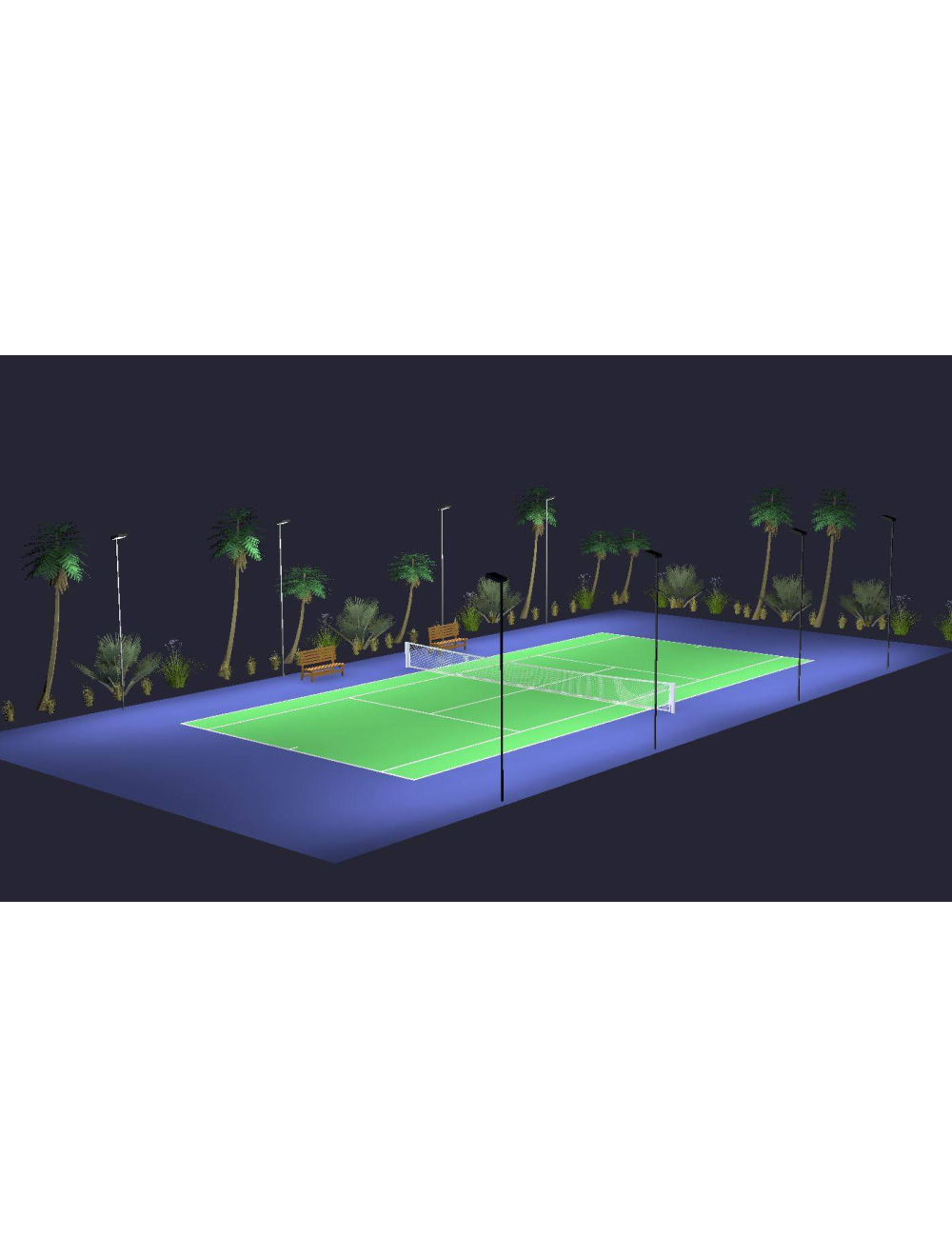

This court package is an ideal setup for any recreational or club tennis court. The package includes 8 fixtures with forward throw LED optics, 8 poles with galvanized anchor bolts and base covers. The forward throw optics allows for the poles to be placed outside of the court area, reducing installtion costs, increasing court light levels and reducing glare. The low EPA of the fixture (0.5) is best for high wind speed areas such as Florida, Gulf of Mexico areas, Coastal areas and the Caribbean. Round tapered poles are required to withstand high wind loads. And aluminum material prevents rusting from salt water air. While the poles are rated for wind speed we cannot account for flying debris which could impact the load capacity. Evenly distributed fixtures are most ideal for an outdoor court with fixtures set at the baseline out side of the alleys

In the second alternate photo the lighting layout shows over 200 lux in the playing area which should give roughly 20fc depending on the playing surface color and the distance the fixtures are mounted from the court.

Sports Brochure

Includes:

8 - 20' Round, 6" Diameter base, 4" diameter top, aluminum tapered poles with powder coat pole for rust prevention, predrilled, rated for Cat 4 hurricane wind speed up to 136 mph with gust of up to 175 mph
8 - Sets of galvanized anchor bolts
8 - Base covers 6"
8 - LED XLCM HO low profile hurricane EPA 0.5 rated LED light fixtures with Foward Throw Optics
8 - Round pole plate adapters

"As a 5.0 tennis player and somebody who likes playing at night, I have come across poor tennis lighting. Tennis is a battle of will and focus; and I like to play competitive, hard-hitting tennis. I spend my day working on lighting projects and I don't want to think about lighting while I'm serving or returning. I will make your court outstanding, so your only problem will be how to overcome the mental struggle of your forehand (or backhand), or for me my terrible net game." - Chris, Owner of LightDisty.com

$15,900.00

SKU

Outdoor-8-8 hurricane

Details

Outdoor Tennis 1 Court Hurricane Rated LED Lighting & Pole Package 8 poles 8 fixtures

PRODUCT HIGHLIGHTS

• Excellent for outdoor tennis courts which are end to end, 8 units per court, yielding the best possible lighting setup
• Unique Forward Throw LED Optics

Allows for poles to be placed outside of court area reducing installation costs
Maximizes light inside of the court area
Minimizes glare

• Fixture setup is ideal for outdoor tennis visibility
• High lumen per watt increases efficiency and reduces energy costs
• 100,000 hour life reduces maintenance costs to zero, with a possible 90+ year usability (at 3 hours per day/365 days/year)
• Instant on (no warm up period) increasing playing time, reducing energy costs
• Quiet operation
• 5 year warranty

FIXTURE SPECIFICATIONS

SMARTTEC™ - LSI drivers feature integral sensor which reduces drive current, when ambient temperatures exceed rated temperature.

ENERGY SAVING CONTROL OPTION - DIM - 0-10 volt dimming enabled with controls by others. Available with High Output (HO) drive current only.

EXPECTED LIFE - Minimum 60,000 hours to 100,000 hours depending upon the ambient temperature of the installation location. See LSI web site for specific guidance.

LEDS - Select high-brightness LEDs in Cool White (5000K nominal), or Neutral White (4000K nominal) color temperature, 70 CRI (nominal).

DISTRIBUTION/PERFORMANCE - Types FT, FT-L, FT-R and 5. FT-L and FT-R allow for D180 mounting configurations with factory set optics for applications such as automotive front row. Exceptional uniformity creates bright environment at lower light levels. Internal Louver (IL) option available for improved backlight control without sacrificing street side performance for FT distribution. Consult factory for internal louver for FT-L and FT-R applications.

HOUSING - One-piece, die-formed aluminum housing contains factory prewired driver. Wiring access door (with safety lanyard) located underneath.

OPTICAL UNIT - Clear tempered flat glass lens permanently sealed to weather-tight aluminum optic frame creates an IP65 rated optical unit (includes pressure-stabilizing breather).

MOUNTING - Tapered rear design allows fixtures to be mounted in 90° and 120° configurations without the need for extension arms. Use with 3” reduced drilling pattern. A round pole plate is required for mounting to round poles. Wall mount available by ordering wall mounting bracket (BKS-XBO-WM-*-CLR). Proprietary pole quick mount accessories available with horizontal mounting or fixed 15° angled mounting (PQMH-KIT-CLR and PQM15-KIT-CLR) for mounting to square poles. See Accessory Ordering Information chart for all brackets.

ELECTRICAL - Two-stage surge protection (including separate surge protection built into electronic driver) meets IEEE C62.41.2-2002, Location Category C. Available with universal voltage power supply 120-277 VAC (50/60Hz input), and 347-480 VAC. Optional buttontype photocells (PCI) are available in 120, 208, 240, 277 or 347 volt (supply voltage must be specified).

DRIVER - Available in SS (Super Saver) and HO (High Output) drive currents. Components are fully encased in potting material for moisture resistance. Driver complies with FCC standards. Driver and key electronic components can easily be accessed.

OPERATING TEMPERATURE - -40°C to +50°C (-40°F to +122°F) FINISH - Fixtures are finished with LSI’s DuraGrip® polyester powder coat finishing process. The DuraGrip finish withstands extreme weather changes without cracking or peeling. Available in black, bronze and white. Other standard LSI finishes available. Consult factory.

WARRANTY - LSI LED fixtures carry a limited 5-year warranty

SHIPPING WEIGHT (in carton) - One fixture: 25.25 lbs. (11.5 kg). Packed two per carton: 43.5 lbs. (19.7 kg).

LISTING - UL listed to U.S. and international safety standards. Suitable for wet locations.

POLE SPECIFICATIONS

20' Tall, 5" Diameter, 7 guage Round Steel Pole EPA 13.1/100mph, will withstand gusts up to 130 mph
Rated to withstand a Category 3 hurricane with proper installation
Galvanized Anchor Bolts to prevent rust corrosion
Dura-Grip Paint on the inside of the pole to prevent rust corrosion

Specifications

More Information
Part Number	XLCM-5RPB3 / 5 S07G 20
Manufacturer	LSI
Watts	278 Watts
Lumens	30900
Input Voltage	120V-277V
Warranty	5 Year
Certifications	, , , , , , , ,
Specification Sheet	Sports Brochure
Lead Time	Build Item 2-3 Weeks, Add Ons/Changes 7-10 Days
