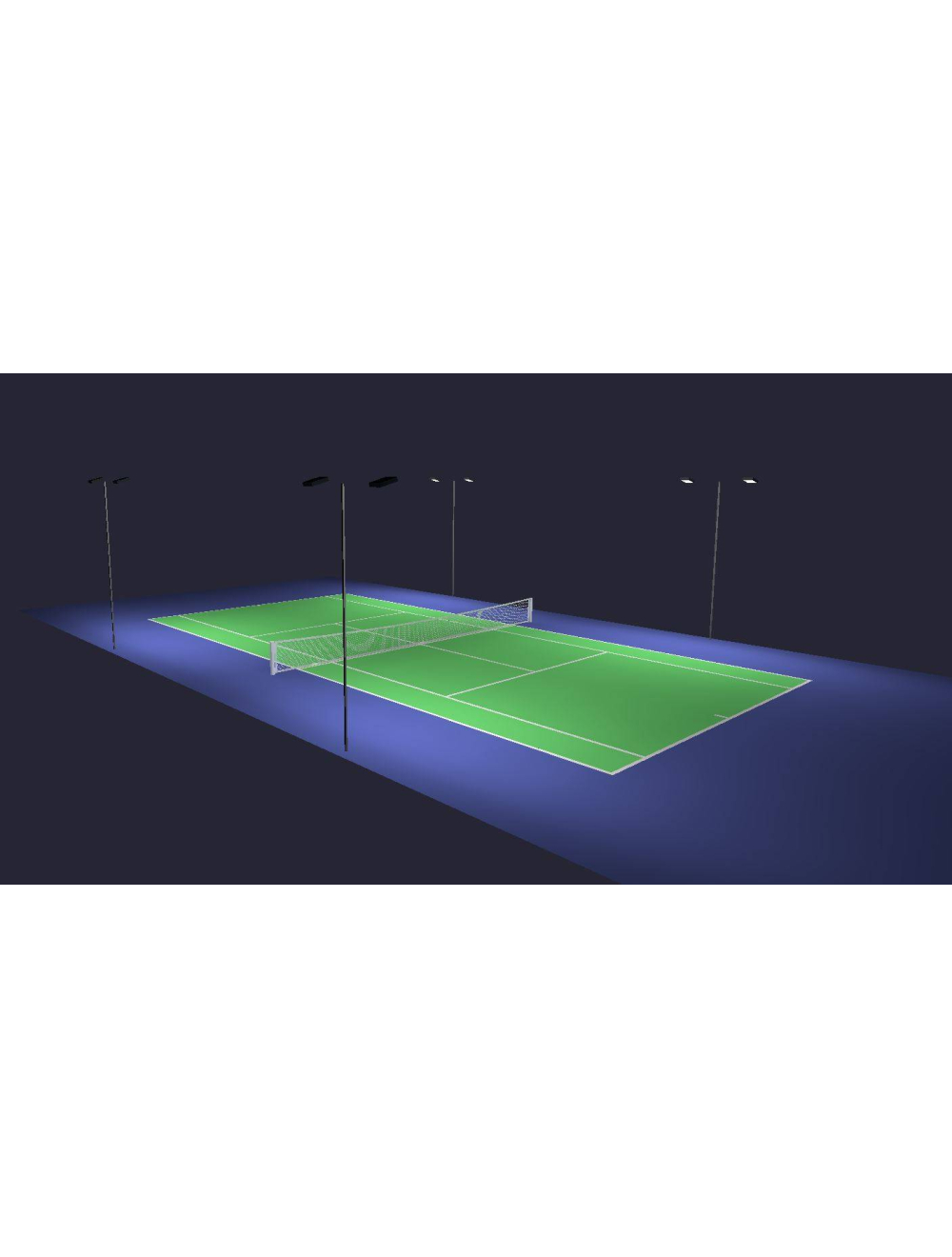

Outdoor Tennis Court LED Lighting & Pole Package 4 poles 8 fixtures fixed
Outdoor Tennis Court LED Lighting & Pole Package 4 poles 8 fixtures
This court package is an ideal setup for any recreational or club tennis court. The package includes 8 fixtures with tilt bracket, 4 predrilled poles with anchor bolts and base covers. The poles feature custom mounts to attach 2 fixtures and we modify the optics to account for the change in distribution. The 15° tilt allows for the poles to be placed outside of the court area, reducing installtion costs, increasing court light levels and reducing glare. The low EPA of the fixtures allows for thinner gauge poles which also reduces costs. Evenly distributed fixtures are ideal for an outdoor court.
*It is possible to use a 6 pole setup with 6 fixtures or a 8 pole setup with 8 fixtures but the distribution will change.
This layout yields roughly a 23fc average. These factors can change depending on the playing surface color and the distance the fixtures are mounted from the court. This light fixture is a one for one replacement with a standard sports lighter 1000 watt HID fixture.
*Every court we list online was made for somebody, just contact us and we'll make you one with your own custom layout.
Includes:
4 - 22' Square, 4"x4", 11 gauge steel powder coated pole, predrilled
4 - Sets of anchor bolts
4 - Base covers 4"
8 - LED XLCM HO 278 watt fixtures with Forward Throw Left/Right Optics
8 - Quick Install Square pole mounts with 15° Tilt
4 - Parallel Mounts
Court alternatives: This package can be configured for multiple playing areas and can also be configured in a 8 pole, 8 fixture setup which creates more even distribution
Pole alternatives: If you are in a high wind load zone such as Florida, New Orleans or other Coastal area. Please contact us so we can configure your poles with the correct rating. There's nothing worse than having a pole get blown over.
"As a 5.0 tennis player and somebody who likes playing at night, I have come across poor tennis lighting. Tennis is a battle of will and focus; and I like to play competitive, hard-hitting tennis. I spend my day working on lighting projects and I don't want to think about lighting while I'm serving or returning. I will make your court outstanding, so your only problem will be how to overcome the mental struggle of your forehand (or backhand), or for me my terrible net game." - Chris, Owner of LightDisty.com
Outdoor Tennis Court LED Lighting & Pole Package 4 poles 8 fixtures fixed
PRODUCT HIGHLIGHTS
• Excellent for outdoor tennis courts
• Unique 15° tilt
- Allows for poles to be placed outside of court area reducing installation costs
- Maximizes light inside of the court area
- Minimizes glare
• 8 fixture setup is ideal for recreational and commercial tennis courts
• High lumen per watt increases efficiency and reduces energy costs
• 100,000 hour life reduces maintenance costs to zero, with a possible 90+ year usability (at 3 hours per day/365 days/year)
• Instant on (no warm up period) increasing playing time, reducing energy costs
• Quiet operation
• 5 year warranty
Court alternatives. This package can be configured for multiple playing areas.
Pole alternatives. If you are in a high wind load zone such as Florida, New Orleans or other Coastal area. Please contact us so we can configure your poles with the correct rating. There's nothing worse than having a pole get blown over.
FIXTURE SPECIFICATIONS
SMARTTEC™ - LSI drivers feature integral sensor which reduces drive current, when ambient temperatures exceed rated temperature.
ENERGY SAVING CONTROL OPTION - DIM - 0-10 volt dimming enabled with controls by others. Available with High Output (HO) drive current only.
EXPECTED LIFE - Minimum 60,000 hours to 100,000 hours depending upon the ambient temperature of the installation location. See LSI web site for specific guidance.
LEDS - Select high-brightness LEDs in Cool White (5000K nominal), or Neutral White (4000K nominal) color temperature, 70 CRI (nominal).
DISTRIBUTION/PERFORMANCE - Types FT, FT-L, FT-R and 5. FT-L and FT-R allow for D180 mounting configurations with factory set optics for applications such as automotive front row. Exceptional uniformity creates bright environment at lower light levels. Internal Louver (IL) option available for improved backlight control without sacrificing street side performance for FT distribution. Consult factory for internal louver for FT-L and FT-R applications.
HOUSING - One-piece, die-formed aluminum housing contains factory prewired driver. Wiring access door (with safety lanyard) located underneath.
OPTICAL UNIT - Clear tempered flat glass lens permanently sealed to weather-tight aluminum optic frame creates an IP65 rated optical unit (includes pressure-stabilizing breather).
MOUNTING - Tapered rear design allows fixtures to be mounted in 90° and 120° configurations without the need for extension arms. Use with 3” reduced drilling pattern. A round pole plate is required for mounting to round poles. Wall mount available by ordering wall mounting bracket (BKS-XBO-WM-*-CLR). Proprietary pole quick mount accessories available with horizontal mounting or fixed 15° angled mounting (PQMH-KIT-CLR and PQM15-KIT-CLR) for mounting to square poles. See Accessory Ordering Information chart for all brackets.
ELECTRICAL - Two-stage surge protection (including separate surge protection built into electronic driver) meets IEEE C62.41.2-2002, Location Category C. Available with universal voltage power supply 120-277 VAC (50/60Hz input), and 347-480 VAC. Optional buttontype photocells (PCI) are available in 120, 208, 240, 277 or 347 volt (supply voltage must be specified).
DRIVER - Available in SS (Super Saver) and HO (High Output) drive currents. Components are fully encased in potting material for moisture resistance. Driver complies with FCC standards. Driver and key electronic components can easily be accessed.
OPERATING TEMPERATURE - -40°C to +50°C (-40°F to +122°F) FINISH - Fixtures are finished with LSI’s DuraGrip® polyester powder coat finishing process. The DuraGrip finish withstands extreme weather changes without cracking or peeling. Available in black, bronze and white. Other standard LSI finishes available. Consult factory.
WARRANTY - LSI LED fixtures carry a limited 5-year warranty
SHIPPING WEIGHT (in carton) - One fixture: 25.25 lbs. (11.5 kg). Packed two per carton: 43.5 lbs. (19.7 kg).
LISTING - UL listed to U.S. and international safety standards. Suitable for wet locations.
| Part Number | XLCM-4SQB3 / 5 S011G 26 |
|---|---|
| Manufacturer | LSI |
| Watts | 278 Watts |
| Lumens | 30900 |
| Input Voltage | 120V-277V |
| Warranty | 5 Year |
| Certifications |  ,  ,  ,  ,  ,  ,  ,  ,  |
| Specification Sheet | |
| Lead Time | Build Item 2-3 Weeks, Add Ons/Changes 7-10 Days |
