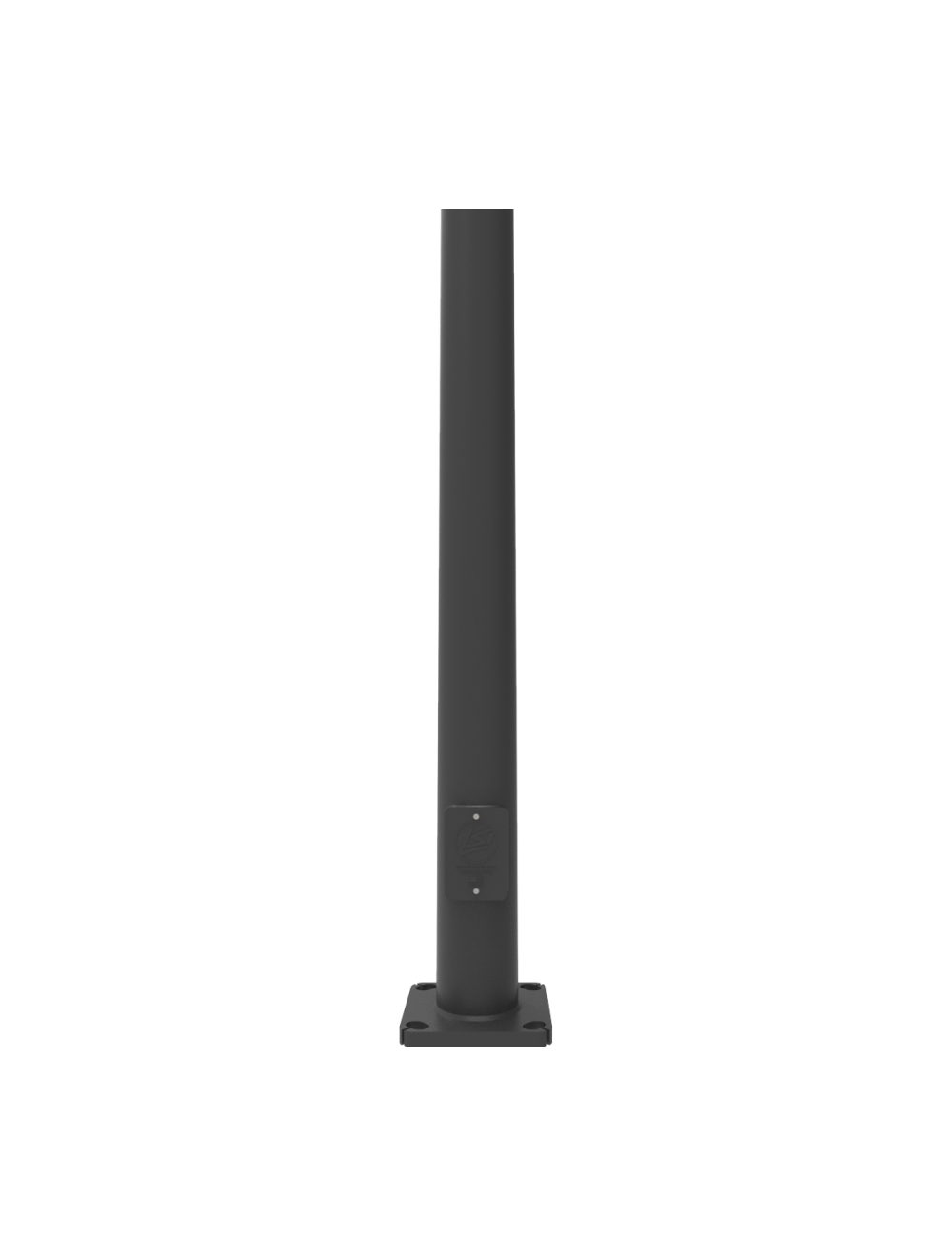

LSI Pole Builder for Steel Round Tapered Poles
LSI Pole Builder for Steel Round Tapered Poles
- Round tapered steel poles up to 39′ in height.
- Pole shaft is electro-welded ASTM-A500 Grade C steel tubing with a minimum yield strength of 50,000 psi.
- Multiple high-strength pipe tenon mount steel poles are available.
- Standard hand-hole location is 12” above ground line.
- Every pole is provided with the DuraGrip® Protection System and a 5-year limited warranty. NOTE This warranty only applies to the exterior finish.
DETERMINING THE LUMINAIRE/POLE COMBINATION FOR YOUR APPLICATION:
• Select luminaire from luminaire ordering information
• Select the bracket configuration if required
• Determine the EPA value from the luminaire/bracket EPA chart
• Select pole height
• Select MPH to match wind speed in the application area (See windspeed map).
• Confirm pole EPA equal to or exceeding the value from the note above
• Consult the factory for special wind load requirements and banner brackets
Pole Shaft • Steel round poles are 4” or 5” in diameter. • Pole shaft is electro-welded ASTM-A500 Grade C Steel Tubing with a minimum yield strength of 55,000 psi. • On Tenon Mount steel poles, tenon is highstrength pipe. Tenon N option is 2-3/8” O.D. x 4-3/4” tall.
Hand-Hole • Standard hand-hole location is 12” above pole base. • Hand-hole size is 4” x 6” and reinforced.
Base • Pole base is ASTM-A36 hot-rolled steel plate with a minimum yield strength of 36,000 psi. • Two-piece square base cover is optional. Decorative base cover is also available.
Anchor Bolts • Steel Round Tapered Poles of 11 gauge material are furnished with anchor bolts featuring zinc-plated double nuts and washers. Galvanized anchor bolts are optional • Poles of 7 gauge material are furnished with galvanized anchor bolts as a standard. Anchor Bolts conform to aSTM F 1554-07a Grade 55 with a minimum yield strength of 55,000 psi
Ground Lug • Ground lug is standard.
Duplex Receptacle • Weatherproof duplex receptacle is optional.
Ground Fault Circuit Interrupter • Self-testing Ground fault circuit interrupter is optional.
Finishes • Every pole is provided with the DuraGrip Protection System and a 5-year limited warranty: • When the top-of-the line DuraGrip Plus Protection System is selected, in addition to the DuraGrip Protection System, a non-porous, automotive-grade corrosion coating is applied to the lower portion of the pole interior sealing and further protecting it from corrosion. This option extends the limited warranty to 7 years.
Determining The Luminaire/Pole Combination For Your Application: • Select luminaire from luminaire ordering information. • Select bracket configuration if required • Determine EPA value from luminaire/ bracket EPA chart • Select Pole Height • Select MPH to match wind speed in the application area (See windspeed maps). • Confirm pole EPA equal to or exceeding value of luminaire/bracket EPA • Consult factory for special wind load requirements and banner brackets.
Pole Vibration Damper • A pole vibration damper is recommended in open terrain areas of the country where low steady state winds are common. • Non-tapered poles and lightly loaded poles are more susceptible to destructive vibration if a damper is not installed.
Listings • UL Listed • BAA/TAA Compliant
| Part Number | RTP |
|---|---|
| Manufacturer | LSI |
| Warranty | 5 Year |
| Certifications |  |
| Lead Time | Build Item 3-4 Weeks |
