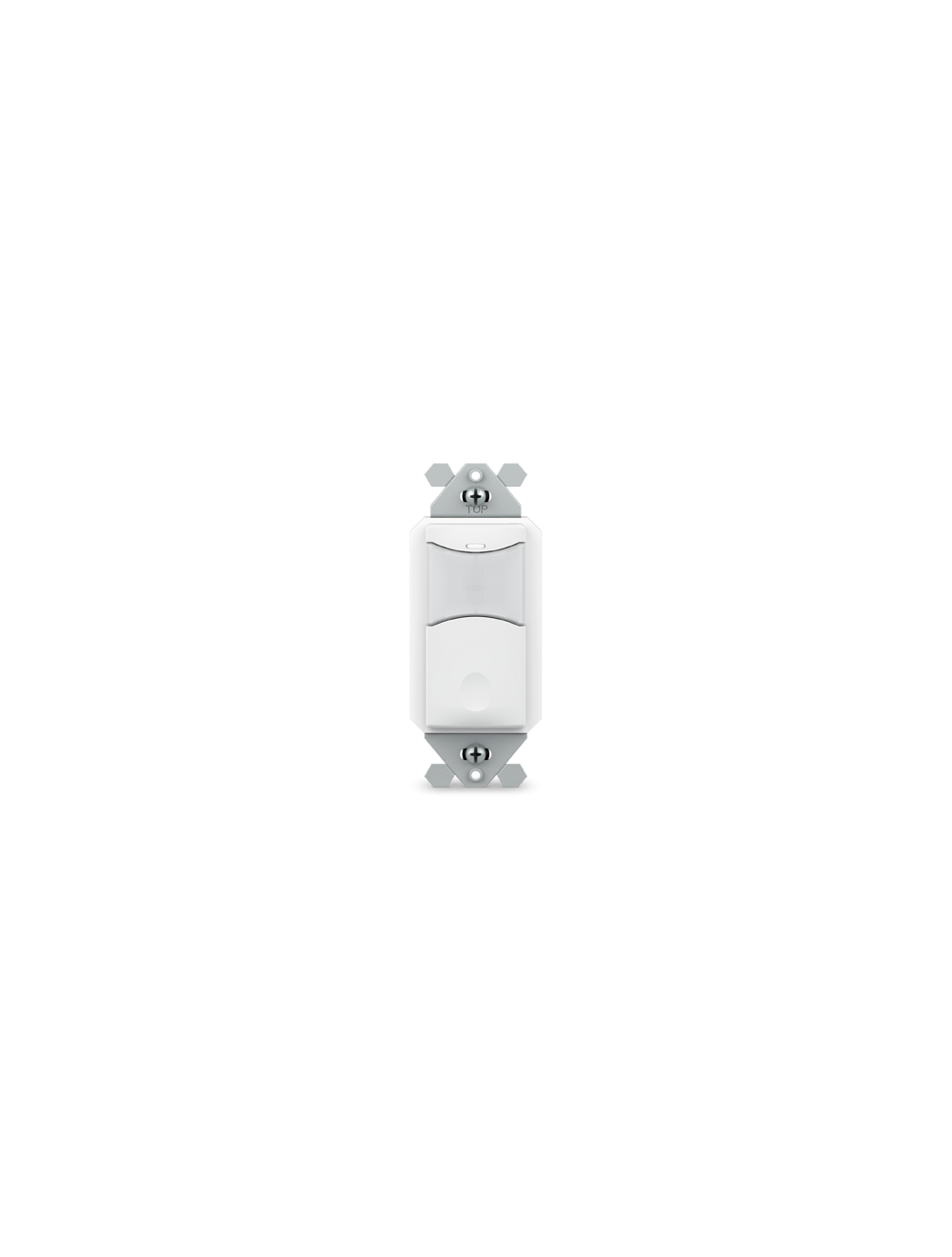

The SENSORWORX family of wall switch occupancy/vacancy sensors provides a simple and cost effective lighting control solution for many applications. Just like its line voltage counterpart, the low voltage SENSORWORX wall switch sensor is designed with contractors in mind. Less than 1” deep, the unit is 25-40% shallower than typical dimmers and sensors, resulting in less crowed wall boxes. SENSORWORX products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched motion detection performance. These units are also available with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion is limited.
PHYSICAL FEATURES
• Enclosure is 25-40% Shallower than Other Sensors (< 1” Depth into Wallbox)
• Unique Bat-Wing Shaped Lens Provides Enhanced Peripheral Detection
• Modern Look and Intuitive Easy-Tap Buttons for On/Off, Raise, & Lower
• Rugged Vandal Resistant Lens
• Settings are Adjustable Without Removing Cover Plate
OPERATIONAL FEATURES
• Wall-To-Wall Passive Infrared Small Motion Detection
• Passive Acoustic Detection (Optional) – Prevents False Offs when No Motion is Present
• 100% Passive Detection Methods – No Interference Potential from External Devices
• Configurable Sensor Settings Including Time Delays and Occupancy/Vacancy Operating Modes
• Blue Locator LED when Lights are Off
• Blue Locator LED when Lights are Off
Part Number | SWX-101-1-WH |
---|---|
Input Voltage | 12-24V |
Warranty | 5 Year |
Minimum Operating Temperature | 32° F |
Maximum Operating Temperature | 122°F |
Certifications | , |
Specification Sheet | |
Dimensions | 2.74”H x 1.68”W x 1.39”D |
Lead Time | In Stock - Quick Ship |
