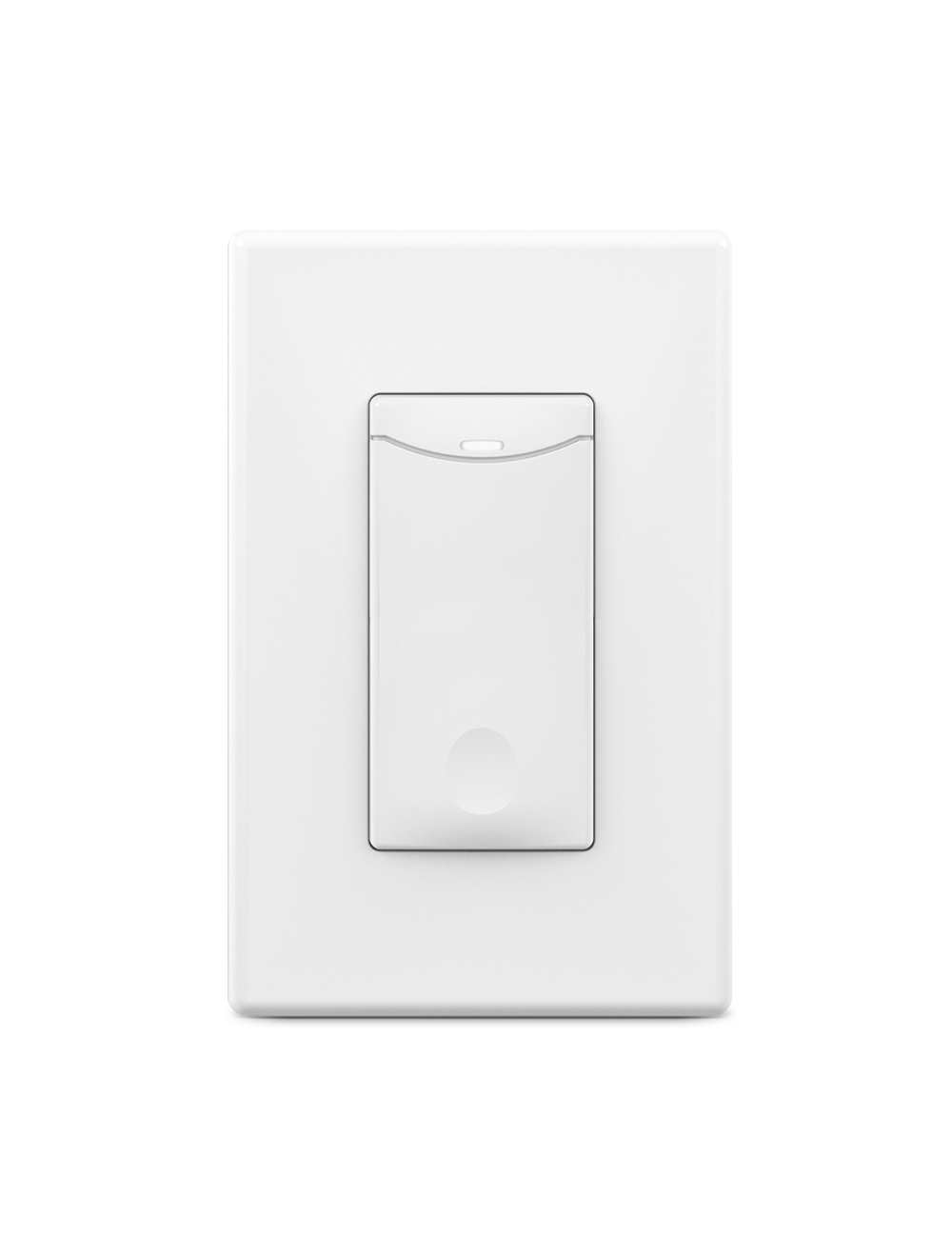

The SENSORWORX line voltage wall switch & 0-10 volt dimmer provides a stylish solution for spaces where
manual dimming control is required. Designed with contractors in mind, the unit is significantly shallower than
typical dimmers, resulting in less crowded wall boxes. Additionally, versatile wiring enables usage with or
without a neutral connection. For dimming adjustment, intuitive raise and lower buttons are present in addition
to the on/off button. Five vertically stacked LEDs are provided to indicate the current dimming level. Configurable
dimming parameters include High/Low Trims, Turn on Levels, and Curve Types. This dimmer also matches the
SENSORWORX family of wall switch occupancy sensors and 0-10V dimming wall switch sensors.
ELECTRICAL FEATURES
• Accommodates Neutral (3-Wire) and No-Neutral (2-Wire) Installations
• Electronically Timed Switching Ensures Long Relay Life
• No Minimum Load or External Load Capacitor (MLC) Requirements
• Meets Regulatory Guidelines for Current Leakage
PHYSICAL FEATURES
• Enclosure is 25-40% Shallower than Other Wall Controllers (< 1” Depth into
Wallbox)
• Self-Grounding Mounting Strap
• Modern Look and Intuitive Easy-Tap Button
OPERATIONAL FEATURES
• Pairs in Seconds with Wireless Sensors & Remote Wall Stations
• Configurable Time Delays and Operational Modes (e.g. Occupancy, Vacancy,
Switch Disable)
• Configurable Photocell Modes
• Blue Locator LED when Lights are Off
• Settings are Adjustable Without Removing Cover Plate
• Links with up to 30 sensors and/or switches
Part Number | SWX-851-WH |
---|---|
Input Voltage | 120V-277V |
Warranty | 5 Year |
Minimum Operating Temperature | 32°F |
Maximum Operating Temperature | 122°F |
Certifications | , , |
Specification Sheet | |
Dimensions | 2.74”H x 1.68”W x 1.39”D |
Lead Time | In Stock - Quick Ship |
