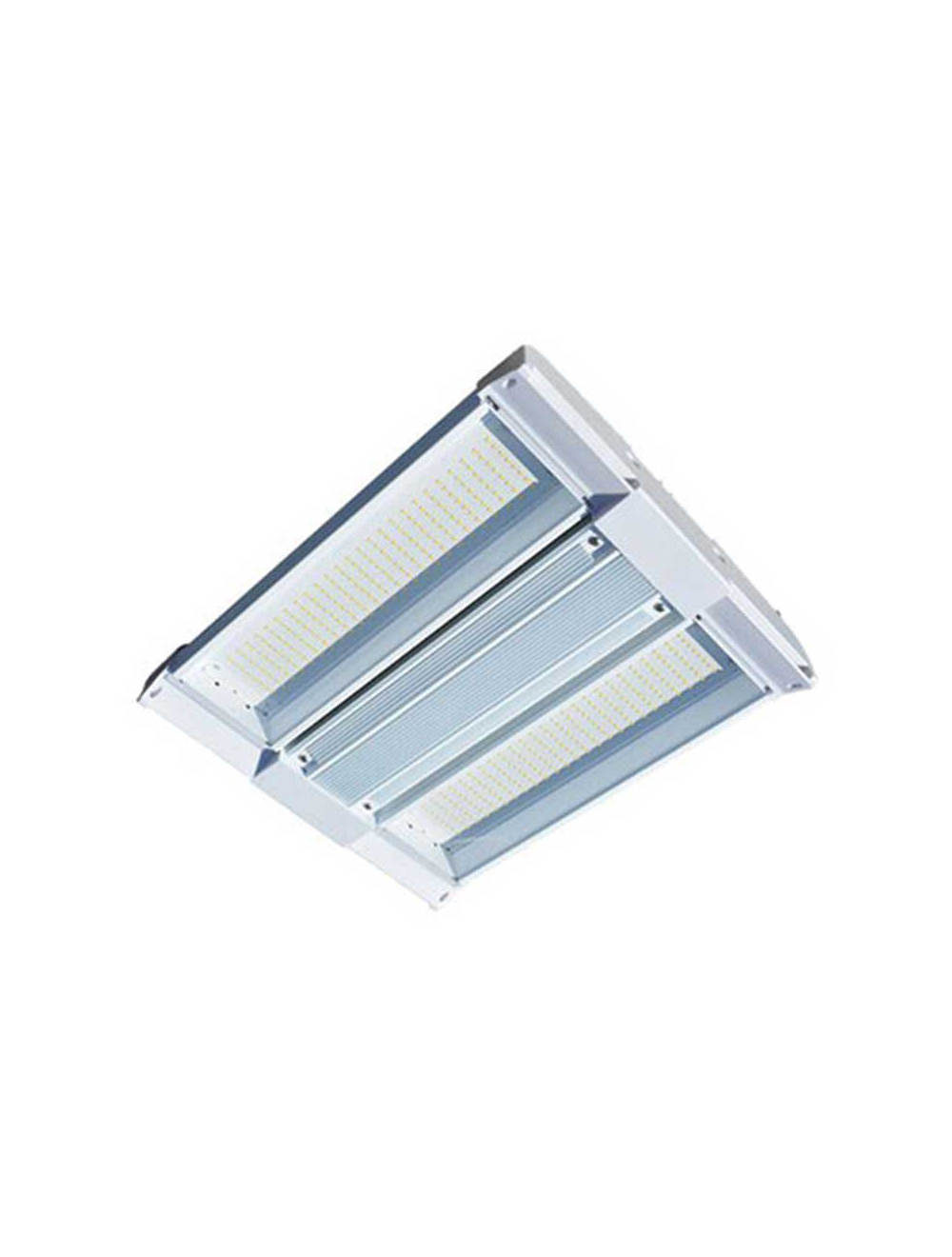

US LED EXB1 ExsaBay Series LED 28' Highbay 5000k
US LED EXB1 ExsaBay Series LED 28" Highbay 5000k
Product Description: For industrial general area new construction or retrofit applications, US LED’ssolution is the ExsaBay family of highbays. The ExsaBay family is an economical, scalable highbay solution to install and replace existing fluorescent, high-pressure sodium and metal halide technologies. The ExsaBay is designed specifically for open area lighting distribution patterns, providing a variety of lumen packages ranging from 14,420 lumens to 55,110 lumens. The ExsaBay is intended to be mounted via adjustable cable hangers in a typical mounting height range of 20’ – 60’.
US LED EXB1 ExsaBay Series LED 28" Highbay 5000k
Product Description: For industrial general area new construction or retrofit applications, US LED’ssolution is the ExsaBay family of highbays. The ExsaBay family is an economical, scalable highbay solution to install and replace existing fluorescent, high-pressure sodium and metal halide technologies. The ExsaBay is designed specifically for open area lighting distribution patterns, providing a variety of lumen packages ranging from 14,420 lumens to 55,110 lumens. The ExsaBay is intended to be mounted via adjustable cable hangers in a typical mounting height range of 20’ – 60’.
Features:
• L70 lifetime of >200,000 hours*
• Mounting height: 14" up to 20', 28" up to 35', 42" up to 50', 56" up to 60'
• Capable of being surface mounted, suspended, or pendant mounted
• Class 2 compliant design (low voltage, limited power)
• Fixture dimmable via Mark 7 (0-10V) dimming interface
• 5-year warranty
| Part Number | EXB28 |
|---|---|
| Manufacturer | US LED |
| Lumens | 14.420 |
| CRI | <80 |
| Color Temperature | 5000 Kelvin |
| Beam Angle | Not Specified |
| Rated Life | 150,000 hours + |
| Dimmable | No |
| Minimum Operating Temperature | 4° |
| Maximum Operating Temperature | 104° |
| Dimensions | 31.5" x 14.5" x 3.5" |
| Certifications |  ,  ,  |
| Warranty | 5 Year |
| Specification Sheet | |
| Lead Time | In Stock - Quick Ship |
