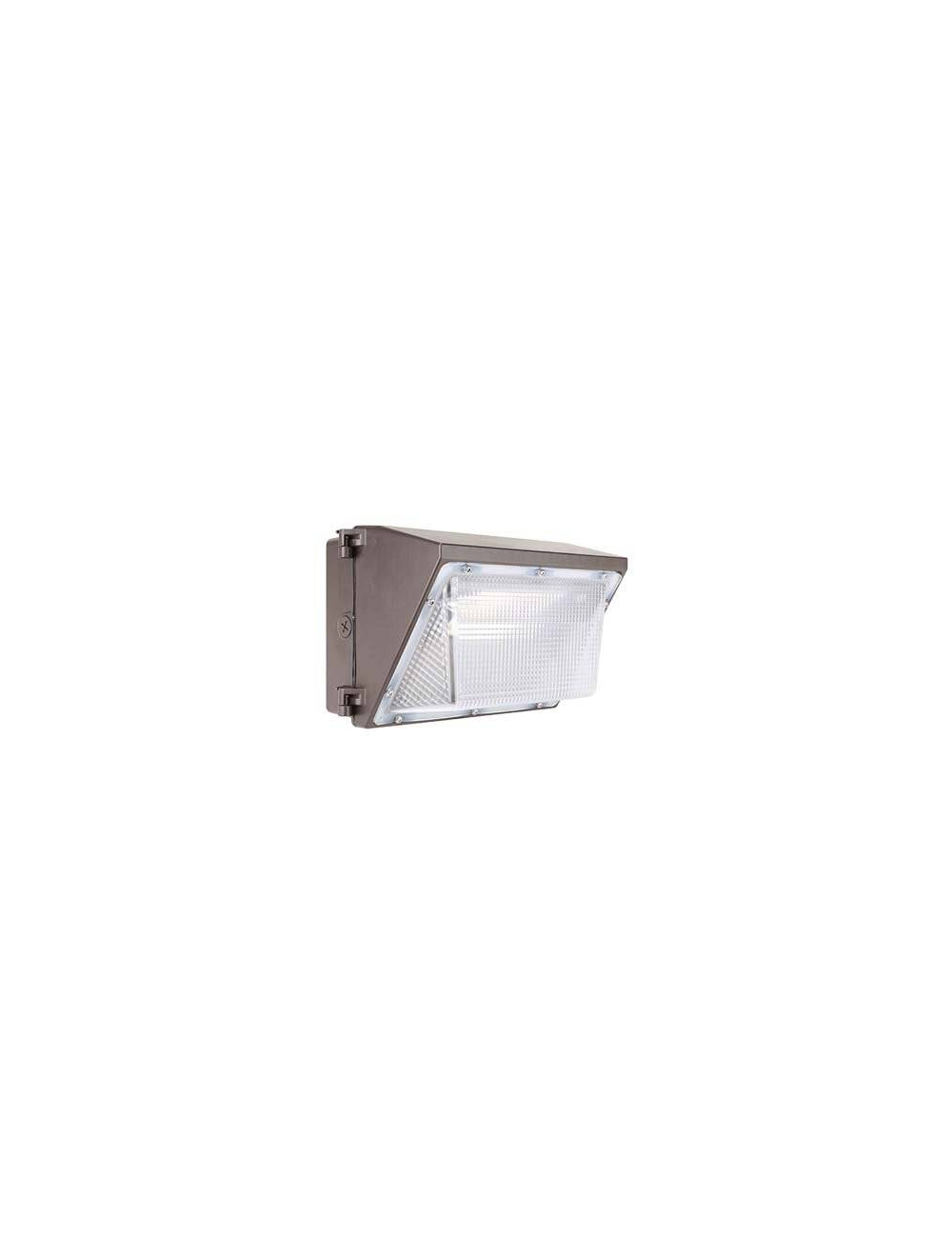

The UV stabilized polycarbonate lens LED wall pack is ideal for security, pathway and perimeter lighting, and building entryways and walkways.
FEATURES:
• Sealed die-casting housing.
• Casting thermally optimizes performance and long life.
• Suitable for applications requiring 3G vibration test according to ANSI C136.31
• Dark bronze finish is standard.
• Field adjustable wattage and CCT.
MOUNTING:
• Wall mounting only.
COVER:
• UV stabilized polycarbonate lens.
• High performance UV stabilized optical grade
polymer refractor lens to achieve desired distribution
optimized to get maximum spacing, target lumens
and uniformity.
LED:
• Lumileds 2835 LED chips.
• Color temperature: field adjustable 30/40/50K
• Lumen efficiency: ≥130m/W
• Color rendering index: >70
• Life span: 50,000 hrs
ELECTRICAL:
• 1-10V dimmable.
• Input voltage: 120-277Vac., 50/60Hz
• Operating temperature: -40ºC to 40ºC (-40ºF to 104ºF)
• Operating temperature with EM: 10ºC to 40ºC (50ºF to 104ºF)
• Power factor >0.9, THD <20%
LISTING:
• UL / cUL wet location.
• DLC listed. 1
• 5 years limited warranty.
• ARRA compliant. (optional)
Part Number | DWP1-3G-62LED-3T-UNV-BZ LED |
---|---|
Manufacturer | Utopia |
Watts | 65 Watts |
Lumens | 3675 - 7711 |
CRI | 70 |
Color Temperature | 3000 Kelvin, 4000 Kelvin, 5000 Kelvin |
Input Voltage | 120V-277V |
Rated Life | 50,000 hours + |
Minimum Operating Temperature | -40°F |
Maximum Operating Temperature | 104°F |
Dimensions | Height: 7.68", Width: 11.95", Depth: 7.08" |
Certifications | , , , |
Warranty | 5 Year |
Specification Sheet | |
Lead Time | In Stock - Quick Ship |
