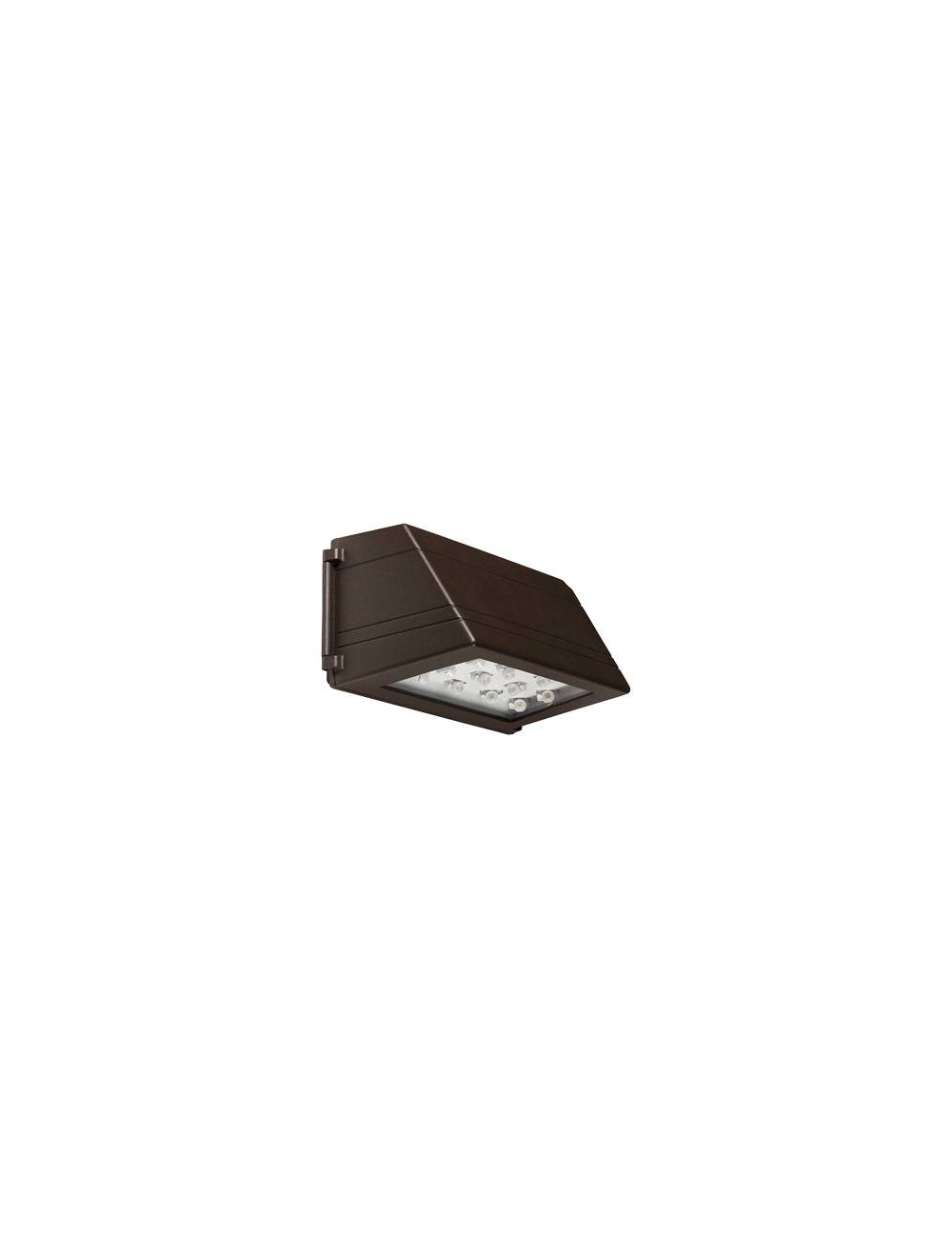

The trapezoid wall sconce down light is ideal for walkways, building exterior walls, parking areas, entrances, underpasses, loading docks and recreation areas. Wall mounting height requires between 8 feet and 15 feet below.
FEATURES:
• Full cut-off dark sky compliant fixtures.
• Heavy duty die-cast aluminum housing on which electrical components are mounted for maximum heat dissipation.
• Silicone rubber gasket included to prevent dirt or moisture from outside.
• Architectural dark bronze finish standard. Also available in white or black finish.
• One piece high reflectance aluminum reflector designed for desired light efficiency.
• Provide down light only.
MOUNTING:
• Wall mounting only.
• Easily installed on recessed junction boxes or direct mounts to the wall with feed thru conduit access.
REFLECTOR & COVER:
• High efficiency anodized aluminum reflector with wide beam spread.
• Heat and impact resistant tempered clear glass lens.
ELECTRICAL:
• LED input 23W drives 13 LEDs.
• CREE XTE LED.
• Min. 1200 lumen output.
• LEDs have nominal 5000K color.
• Input Voltage: 120V-277V, 50/60Hz.
LISTING:
• UL/ CUL listed.
• Suitable for wet location.
• 5 years limited warranty
| Part Number | UDL5-13LED-50K-UNV-BZ LED |
|---|---|
| Manufacturer | Utopia |
| Watts | 23 Watts, 60 Watts |
| Lumens | 1200lm |
| Color Temperature | 5000 Kelvin |
| Input Voltage | 120V-277V |
| Dimensions | Height: 6-1/4", Width: 11-3/8", Depth: 7-5/8" |
| Certifications | ![]() ![]() ![]() |
| Warranty | 5 Year |
| Lead Time | In Stock - Quick Ship |
