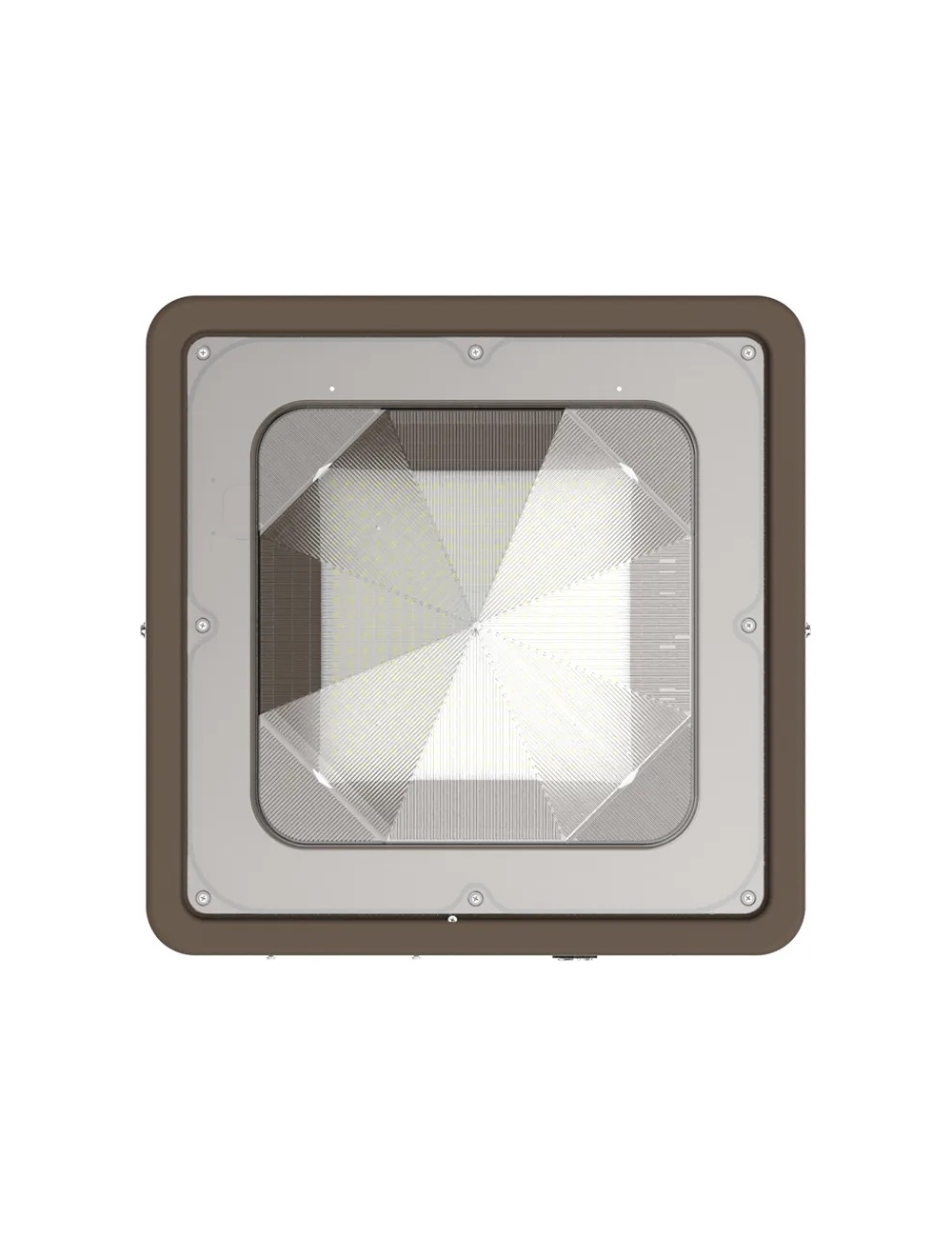

Westgate CXES-10-30W-MCTP Square New Concept Garage and Ceiling Light Wattage and CCT Selectable
Ideal for indoor parking lots, commercial buildings, schools and warehouses.
Electrical:
Wattage: 10W/20W/30W
Input Current: 0.6A MAX
Input Voltage: 120-277VAC 50/60Hz
Power Factor: >0.90
LPW: 130LPW
Mechanical:
Stamped Galvanized Steel
Twist-Lock Zhaga Socket Pre-Installed. See Motion Sensor Accessories
Four 1/2” Threaded Hubs Located On Four Sides Of The Housing
Prismatic Polycarbonate Lens
Lifespan: 70000 Hrs
Operating Temperature: -40°F ~ 104°F
Suitable For Damp Locations
7-year Warranty
Lighting:
MCTP: Multi-CCT and Power Switch Is In The Fixture
Dimming: 0~10V Dimmable
LED Type/ Brand: LUMILEDS 2835LED
Total Lumens: 10400LM Max.
Color Temperature: 3000K/4000K/5000K
Color Rendering index: >70
Beam Angle: 150°
Lifespan: 70000 Hrs
Product Codes:
CXES-10-30W-MCTP
CXES-10-30W-MCTP-EM
CXES-10-30W-MCTP-WH
| Part Number | CXES-10-30W-MCTP |
|---|---|
| Manufacturer | Westgate |
| Watts | 10 Watts, 20 Watts, 30 Watts |
| Lumens | Variable, See Spec Sheet |
| Lumens Per Watt | Variable, See Spec Sheet |
| Color Temperature | 3000 Kelvin, 4000 Kelvin, 5000 Kelvin |
| Beam Angle | 150° |
| Input Voltage | 120V-277V |
| Rated Life | 70,000 hours + |
| Minimum Operating Temperature | -40℉ |
| Maximum Operating Temperature | 104℉ |
| Dimensions | 9" x 9" x 3" |
| Warranty | 7 Year |
| UPC Code | 845060091601 |
| Lead Time | Ships in 2-3 Business Days |
