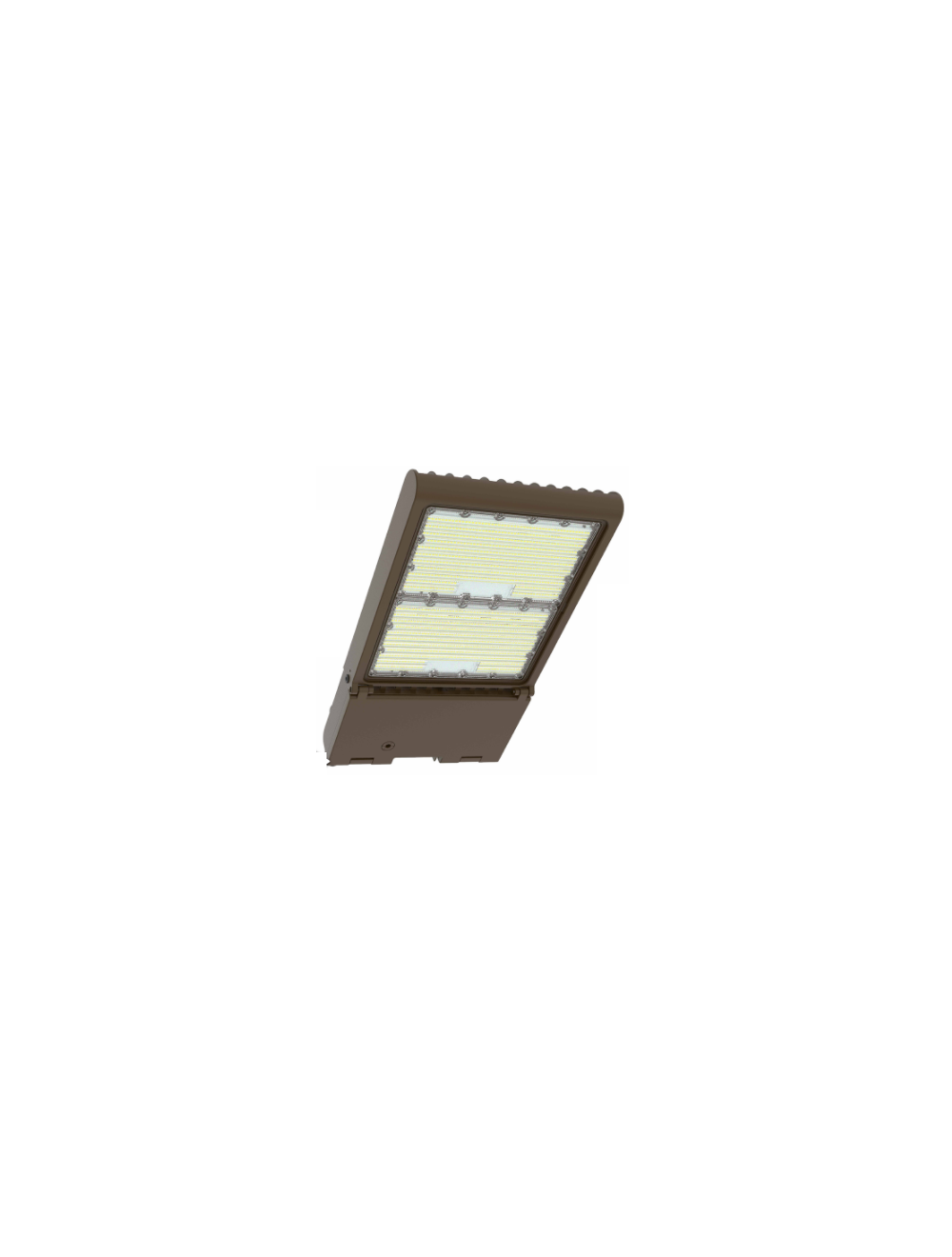

Westgate LFXPRO-XL-150-300W-MCTP LED Multi-Power & Multi-Power & Multi-CCT High Lumen Flood Light 300W
- :: Die-cast Aluminium Housing with Powder Coat ( Dark Bronze Finish)
- :: Multi-CCT & Multi Power - Switches at the bottom of the fixture
- :: 6KV Lightning Surge Protection
- :: Lens: Optical Type III, High Light
- :: Lumens Range: 22400LM - 38000LM
- :: Wattage: 150-300W
- :: Voltage: 100-277V AC 50/60Hz
- :: Efficacy: 125LPW
- :: Power Factor: >0.9
- :: Operating Temp: -40°F to 104°F
- :: Beam Angle: 90° x 120°
- :: Color Rendering Index: CRI ≥ 70
- :: Lifespan: 70,000 hours
- :: 7-year warranty
- :: IP Rating: IP65, Wet Location
$398.74
Lead Time
In Stock - Quick Ship
SKU
LFXPRO-XL-150-300W-MCTP
Electrical:
- Voltage: 100-277V AC 50/60Hz
- Wattagw: Wattage: 150W/ 200W/ 240W/ 300W
- Power Factor: >0.9
- Output Current: 0.25A
- Efficacy: 125 LPW
- THD: <20%
Lighting:
- Dimmable: 0~10V
- Solid State Lighting technology for long life, no Maintenance needed and High-Efficiency
- Lens Type: Optical TYPE III Lens, High Light Transmittance PC, Anti-UV and Flame Resistant
- Cord Type: 3.2’ SJTW 18/3 AWG cable
- Total lumens: 38000LM Max.
- Color temperature: 3000K/ 4000K/ 5000K/ 5700K
- Color rendering index: CRI ≥ 70
- Beam Angle: 90°x120°
Mechanical:Housing:
- Housing: Die-cast Aluminum Housing with Powder Coat Finish (Dark Bronze) •
- 6KV Lightning Surge Protection •
- IP Rating: IP65 •
- 10KV Lightning Surge Protection •
- Operating Temperature: -40°F to 104°F •
- Suitable for Wet Locations •
- Effective projected areas (EPA’s) are: Front = 0.38 square feet Side = 0.30 square feet Face = 1.05 square feet
Applications:
- Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
- Replace existing HID flood lights/ wall packs
| Part Number | LFXPRO-XL-150-300W-MCTP |
|---|---|
| Manufacturer | Westgate |
| Watts | 150 Watts, 200 Watts, 240 Watts, 300 Watts |
| Lumens | 38000LM Max. |
| CRI | 70 |
| Color Temperature | 3000 Kelvin, 4000 Kelvin, 5000 Kelvin, 5700 Kelvin |
| Beam Angle | 90°, 120° |
| Input Voltage | 120V-277V |
| Rated Life | 70,000 hours + |
| Minimum Operating Temperature | -40°F |
| Maximum Operating Temperature | 104°F |
| Dimensions | 22 5/8”(L) x 12 5/8”(W) x 3 1/2”(H) |
| Certifications |  ,  ,  ,  |
| Warranty | 7 Year |
| Lead Time | In Stock - Quick Ship |
| UPC Code | 845060072648 |
