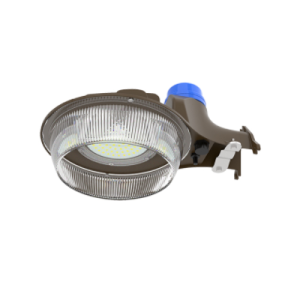

Westgate LRX-50-120W-MCTP LRX-LED Multi-Power & Multi-CCT Area Light 15600LM

Features:

• Back plate: Die-cast aluminum
• Polycarbonate Lens
• 7-Year Warranty
• Multi CCT, Switch is on bottom of Fixture

Technical Specifications:

Electrical:

• Voltage: 120-277V AC 60Hz
• Wattage: 50W /80W/ 100W/ 120W
• Power Factor: >0.90
• Efficacy: 130 LPW
• THD: <20%

Lighting:

• Dimming: 0-10V Dimming
• Total Lumens: 15600LM
• Multi CCT, Switch is on bottom of Fixture
• Color Temperatures: 3000K/ 4000K/ 5000K/ 5700K
• Color Rendering Index: CRI ≥ 70
• Beam Angle: 90° x 110°
• Rated life: 70,000 Hrs

Mechanical:

• Die-Cast ADC12 Aluminum Alloy, Outdoor Powder Coated
• Lens: High light Transmittance PC, Anti-UV and Fire Resistant
• 1-1/4” EMT Elbow & Mounting Strap Included
• NEMA Twist-Lock Photocell Included
• Aluminum LED board: High Conductive, Waterproof, Aging Resistance, Salt Resistance
• Operating Temperature: -4ºF to 104ºF
• Wet Location
• 7-Year Warranty • IP44

Applications:

• LED Dusk to Dawn Light with Photocell ideal for general site lighting, yarn/barn lighting, loading docks, doorway, pathway and parking areas.
