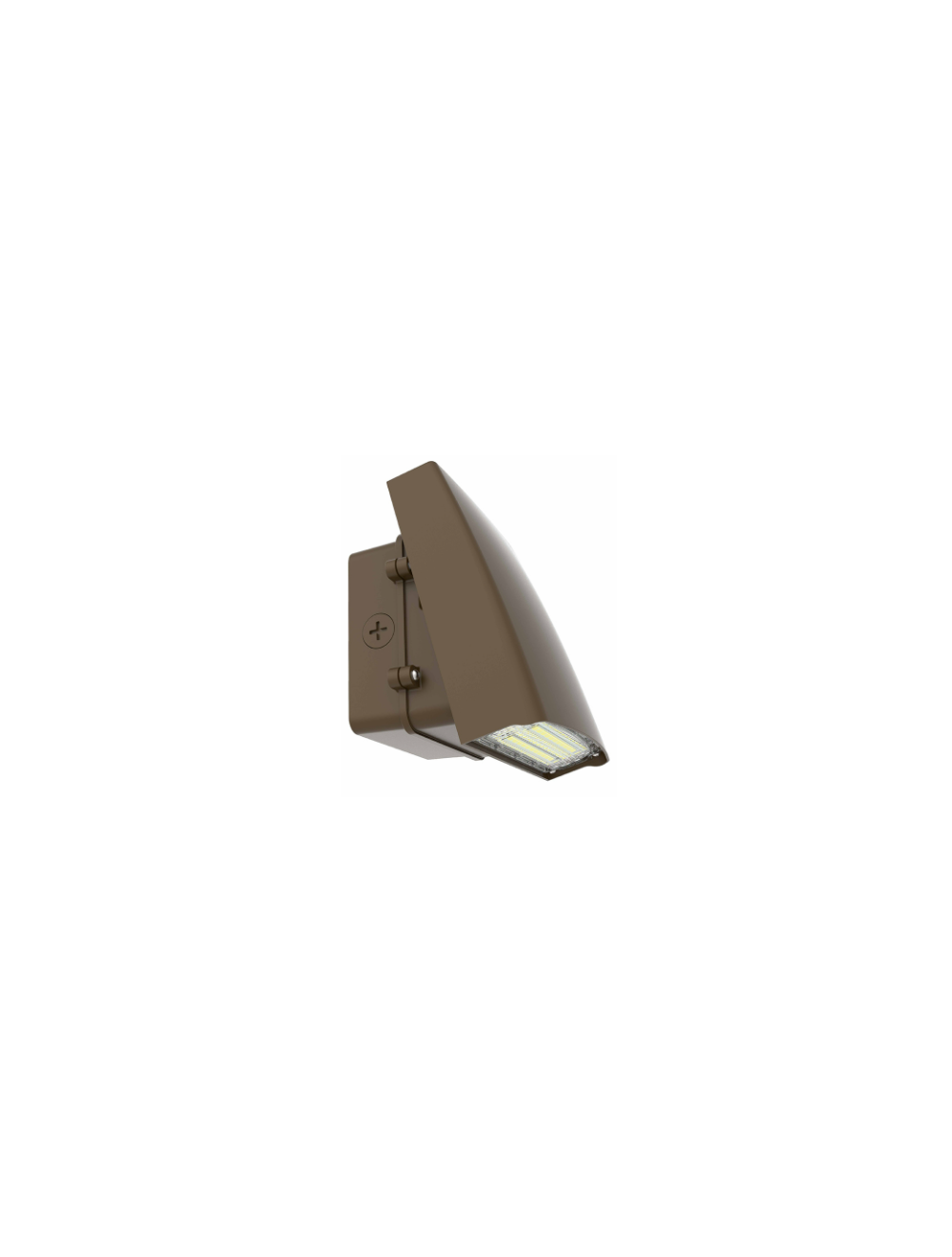

Westgate LWAX-MD-20-50W-MCTP LED Power & CCT Adjustable Cutoff Wall Pack Power & CCT Adjustable Full Cutoff Wall Pack

Features:

• High Light Transmittance, Anti-UV and Fire Resistant PC Lens
• LED Type/Brand: SMD 3030/ Philips Lumileds LEDs
• Four 1/2” Knockouts: 1 Top. 1 on Each Side, 1 Back
• Die-Cast Aluminum With Powder Coat Finish (Dark Bronze)
• 7-Year Warranty
• Multi CCT and Power (Switches are inside fixture)

Technical Specifications:

Electrical:

• Voltage: 120-277VAC 60Hz
• Wattage: 20W/ 30W/ 40W/ 50W
• Power Factor: >0.95
• Efficacy: 125 LPW

Lighting:

• Dimming: 0~10V Dimmable
• Multi CCT and Power (Switches are inside fixture)
• LED Type/Brand: SMD 3030/ Philips Lumileds LEDs
• The Type II Distribution is Used For Wide Walkways, On Ramps and Entrance Roadways, As Well As Other Long, Narrow Lighting
• Total Lumens: 6150LM Max.
• Color Temperatures: 3000K/ 4000K/ 5000K/ 5700K
• Color Rendering Index: CRI ≥ 80
• Beam angle: 80° x 100°
• Rated life: 70,000 Hrs

Mechanical:

• Die-Cast Aluminum With Powder Coat Finish
• High Light Transmittance, Anti-UV and Fire Resistant Shatterproof PC Lens
• Light Head Can Be Adjusted From 0° to 90°
• Full Cutoff, Dark Sky Compliant
• Four 1/2” Knockouts: 1 Top. 1 on Each Side, 1 Back
• Operating Temperature: -4ºF -104ºF
• Wet Location
• 7-Year Warranty
• IP65

Applications:

• General site Lighting
• Alleys
• Loading docks
• Doorways
• Pathways
• Parking areas
