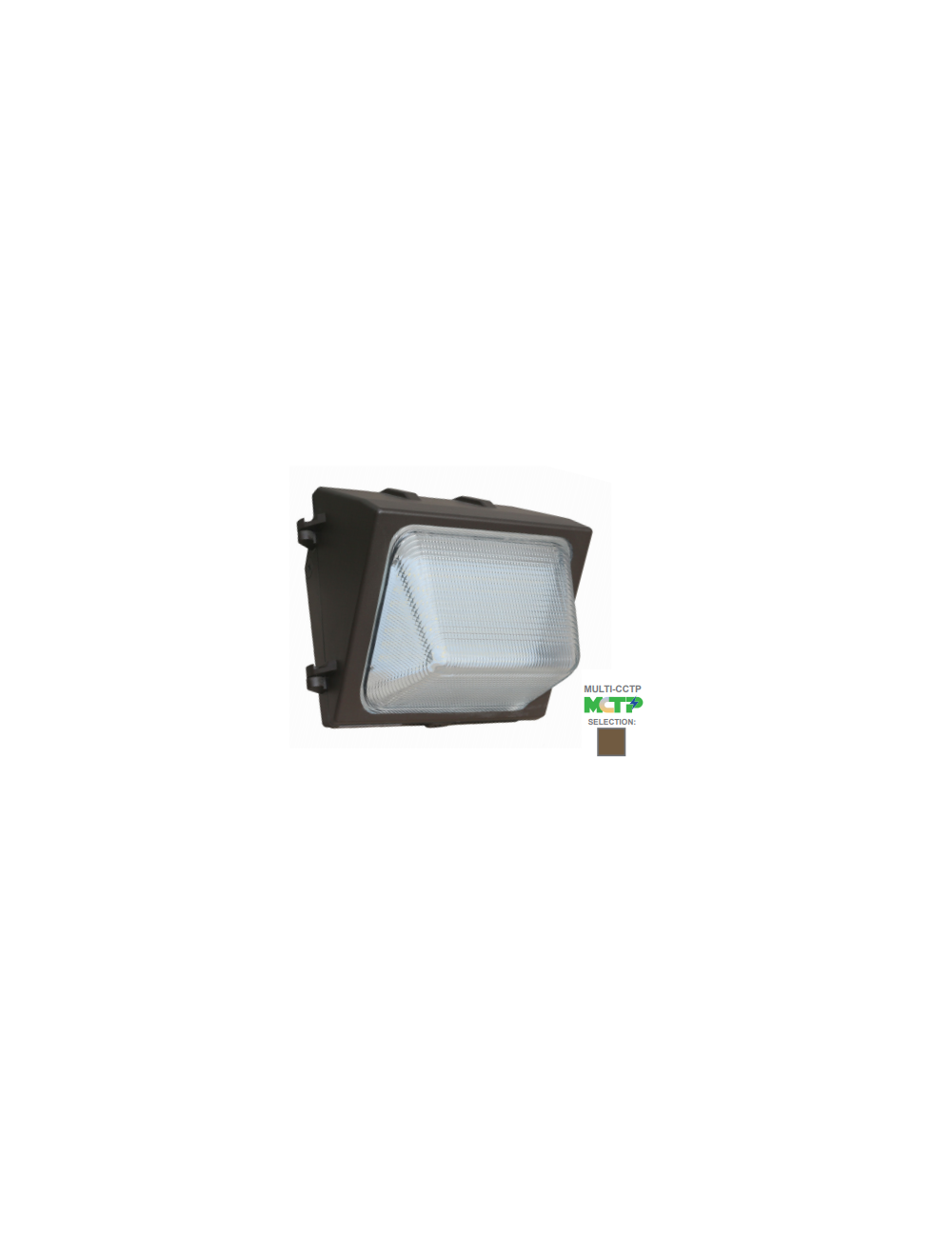

Westgate WMXPRO-MD-20-80W-MCTP LED Multi-Power & Multi-CCT Non-Cutoff Wall Pack 11200LM

Ideal for general site lighting, alleys, loading docks, doorway, pathway, and parking areas. Great for use with motion sensors or another instant on/off controls.

$156.74

Lead Time

In Stock - Quick Ship

SKU

WMXPRO-MD-20-80W-MCTP

Details

Features:

ADC12 Aluminum Heat Sink, Outdoor Powder Coating
Connect One End or Both Ends (Dual Function)
Multi Power & CCT (Switches are inside fixture)
7-year warranty
Prismatic Borosilicate Glass Lens

Technical Specifications:

Electrical:

Input Wattage: 20/40/60/80W
Input Voltage: 120-277V AC 50/60Hz
Input current: 0.6A
Power factor: >0.9
Efficacy: 130 LPW

Lighting:

Dimming: 0-10V Dimming
Chip: Philips Lumileds LEDs
Multi Power & CCT (Switches are inside fixture)
Total Lumens: 11200LM Max
Color Temperature: 3000K/4000K/5000K/5700K
CRI: >70

Mechanical:

ADC12 Aluminum Heat Sink, Outdoor Powder Coating
Lens: Prismatic Borosilicate Glass Lens
Same Footprint as Traditional HID Wall Packs
Four 1/2” Hubs: 1 top. 1 on Each Side, 1 Rear
Mounting: Wall Mounting • Operating Temperature: -40°F ~ 104°F
Lifespan: 70000 Hrs.
IP rating: IP65, Wet Locations

Applications:

Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
Replace existing HID wall packs
Great for use with photocell

Specifications

More Information
Part Number	WMXPRO-MD-20-80W-MCTP
Manufacturer	Westgate
Watts	80 Watts
Lumens	11200LM Max
CRI	70
Color Temperature	3000 Kelvin, 4000 Kelvin, 5000 Kelvin, 5700 Kelvin
Input Voltage	120V-277V
Rated Life	70,000 hours +
Minimum Operating Temperature	-4° F
Maximum Operating Temperature	104° F
Dimensions	15 1/4”(W) x 9 1/2”(H) x 7 1/2”(D)
Certifications	, , ,
Warranty	7 Year
UPC Code	845060072761
Lead Time	In Stock - Quick Ship
