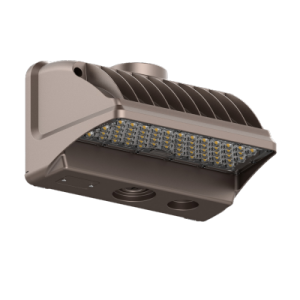

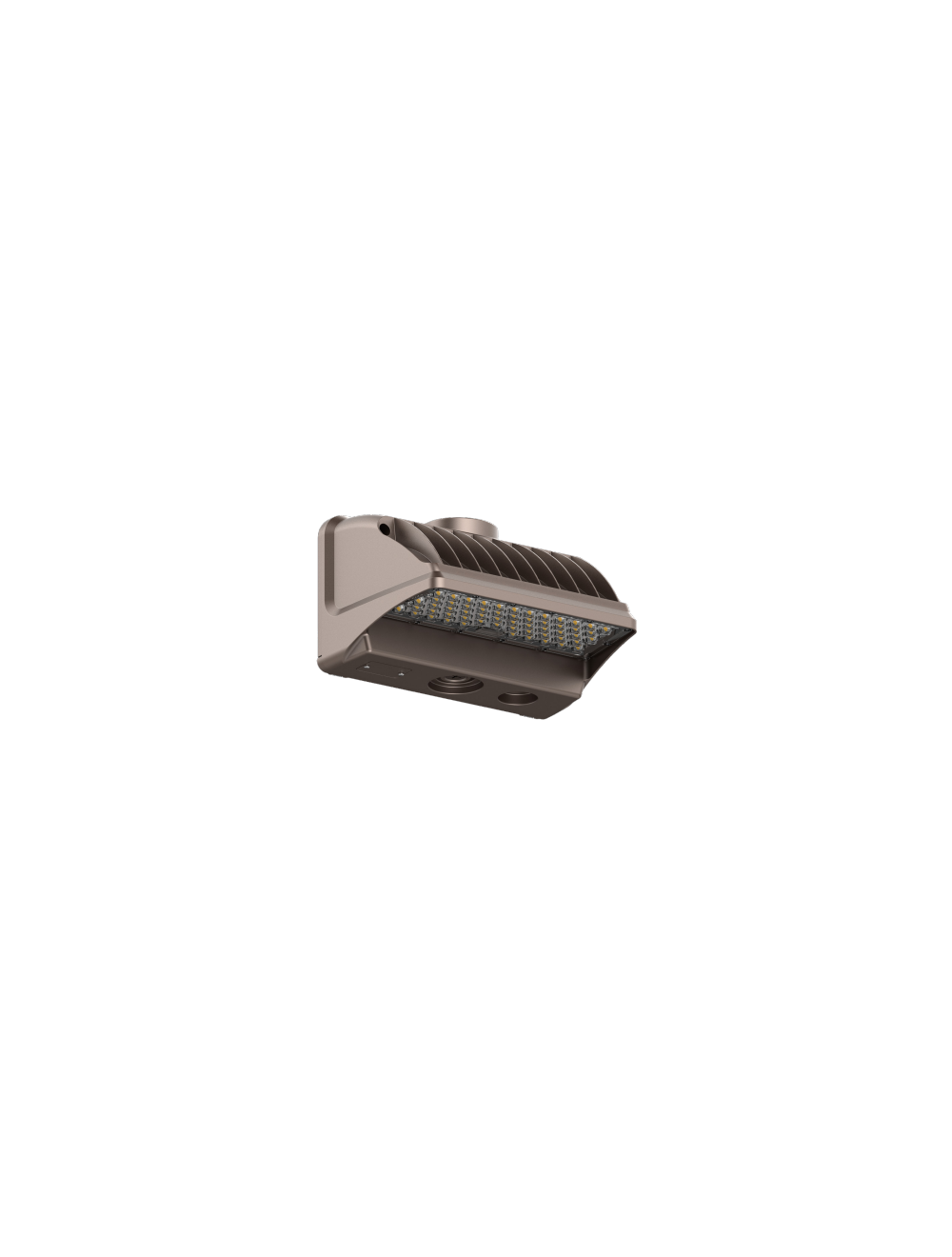

Westgate WPX-80W-MCTP LED Power & CCT Adjustable Full Cutoff Wall Pack 20W/ 40W/ 60W/80W

Features:

• High Light Transmittance, Anti-UV and Fire Resistant PC Lens
• 7-Year Warranty
• Die-Cast Aluminum With Powder Coat Finish (Dark Bronze)
• Multi CCT and Power (Switches are inside fixture)

Technical Specifications:

Electrical:

• Voltage: 120-277VAC 60Hz
• Wattage: 20W/ 40W/ 60W/80W
• Power Factor: >0.95
• Efficacy: 135 LPW

Lighting:

• Dimming: 0~10V Dimmable
• Multi CCT and Power (Switches are inside fixture)
• The Type II Distribution Is Used for Wide WalkWays, on Ramps and Entrance Roadways, As Well As Other Long, Narrow Lighting
• Total Lumens: 5670LM Max.
• Color Temperatures: 3000K/ 4000K/ 5000K
• Color Rendering Index: CRI ≥ 80
• Rated life: 70,000 Hrs

Mechanical:

• Die-Cast Aluminum With Powder Coat Finish (Dark Bronze)
• High Light Transmittance, Anti-UV and Fire Resistant Shatterproof PC Lens
• Operating Temperature: -4ºF to 104ºF
• IP 65 • Wet Location
• 7-Year Warranty
• Full Cutoff, Dark sky Compliant

Applications:

• LED Wall Pack Light series can be widely used as Exterior or Interior LED lighting for Hotels, Garages, Commercial Buildings, Public areas, Schools and Hospitals, etc.
