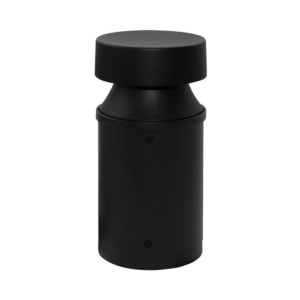

The DuraGuard NP20 Pathlight provides full cutoff lighting for outdoor path, walkways and landscape areas using wide spread SoftLED LumaLens optics designed to replace outdated Halogen and Compact Fluorescent lighting systems. These fixtures are ideal for retail centers, restaurants, hotels, schools and universities, public transit and airports, office buildings and medical facilities.
Description: The DuraGuard NP20 Pathlight provides full cutoff lighting for outdoor path, walkways and landscape areas using wide spread SoftLED LumaLens optics designed to replace outdated Halogen and Compact Fluorescent lighting systems. These fixtures are ideal for retail centers, restaurants, hotels, schools and universities, public transit and airports, office buildings and medical facilities.
Specifications and Features:
Housing: Die-Cast Aluminum Shade and Housing, Aluminum Stanchion.
Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment.
Wattage: Array: 14w, System: 16.9w
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: Clear or LumaLens Opal UV-Stabilized Polycarbonate Array Lens
Mounting Options: 3/4" Diameter Threaded Stanchion. Includes 3/4" to 1/2" Threaded Adaptor.
Driver: Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%. Dimming Source Current is 150 Microamps. 12V: Electronic Driver, 12-17VAC Input, 50/60Hz, Non- Dimmable.
| Manufacturer | DuraGuard |
|---|---|
| Input Voltage | 120V-277V, 12V |
| Dimmable | No |
| Rated Life | 200,000 hours + |
| Dimensions | 9.75" Diam x 20.25" H |
| Certifications | ![]() |
| Warranty | 5 Year |
| Lead Time | Not Specified |
