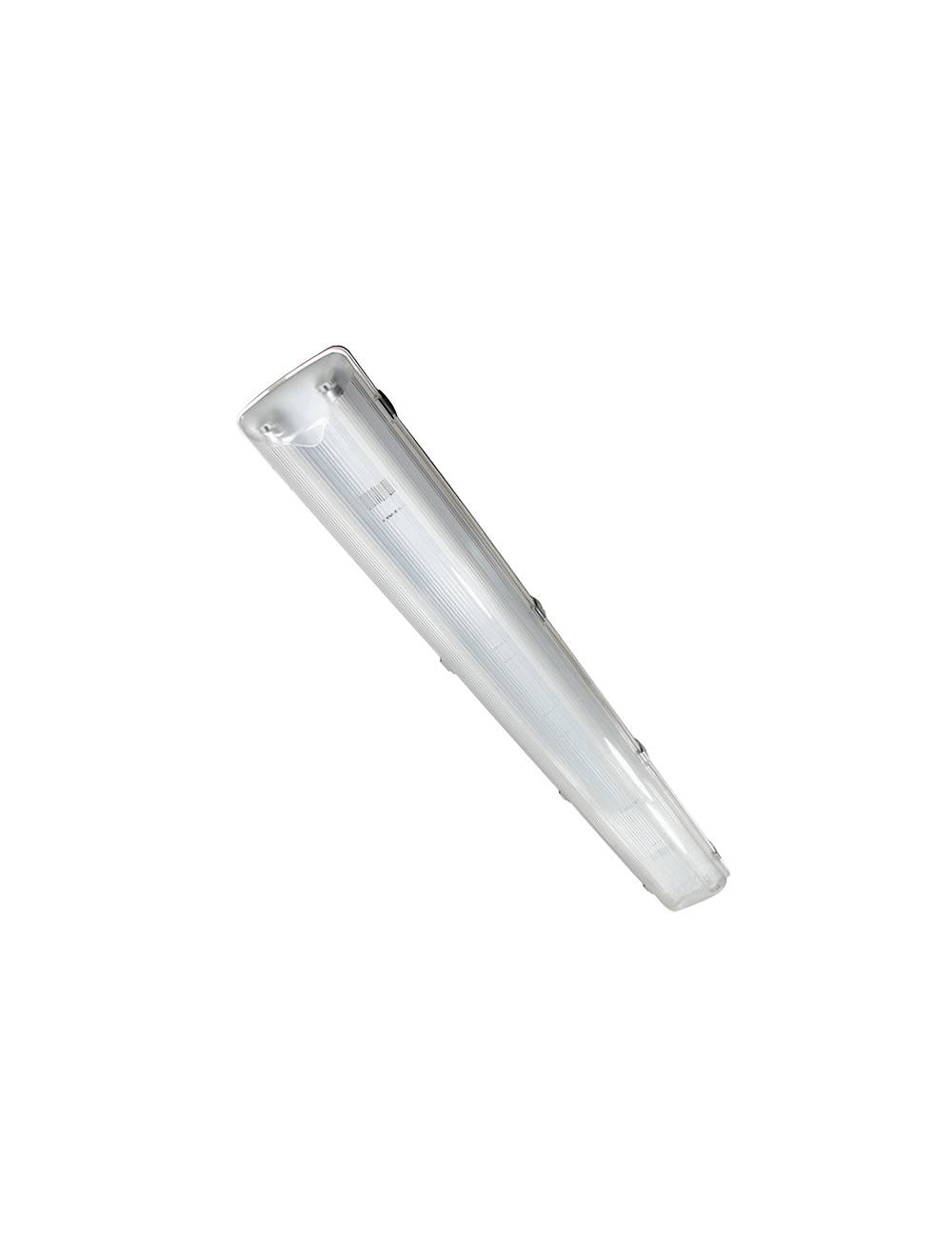

Maxlite LSV2XT8USE4806 2 lamp 4' LED T8 Vapor Tight Fixture 74850
Maxlite LSV2XT8USE4806 2 lamp 4' LED T8 Vapor Tight Fixture 74850
PRODUCT DESCRIPTION:
The MaxLite Lamp Ready Vapor tight series provides Architects, Specifiers, and Buyers with a UL listed fixture engineered to operate the latest single ended LED T8 lamps on the market. Offering classic IP65 ratings, with spec grade Stainless steel latches, these fixtures come pre-wired for single ended operating LED lamps for contractor ready installation as new or remodel fixtures
How To Order:
1. Choose your optional lamp configuration
• No lamp, you can provide your own single pole LED. If you don't know what single pole is we recommend using our LEDs.
• Choose one of our LEDs. We continually update the LEDs paired with fixtures to provide the newest and most efficient version.
Maxlite LSV2XT8USE4806 2 lamp 4' LED T8 Vapor Tight Fixture 74850
PRODUCT DESCRIPTION:
The MaxLite Lamp Ready Vapor tight series provides Architects, Specifiers, and Buyers with a UL listed fixture engineered to operate the latest single ended LED T8 lamps on the market. Offering classic IP65 ratings, with spec grade Stainless steel latches, these fixtures come pre-wired for single ended operating LED lamps for contractor ready installation as new or remodel fixtures
FEATURES:
• 2 lamp options, 18 watt or 22 watt (per lamp)
• Stainless Steel spec grade hasps and clips
• Lead wires are 7’ for tandem wiring, eliminating back and end knockouts.
• Sockets are wired in series via non-shunted sockets
• Ceiling or wall mounted
• Surface mount brackets included
CONSTRUCTION:
• Engineered and UL rated to take up to 22w per set of lamp holders
• Pour in place silicone seal provides hermetically sealed envelope for wet environments
• Polycarbonate Grey Housing and clear lens standard.
• Wiring is 18 AWG solid to allow 120-277v operation where lamp specification allows
• Sockets rated to 660w , 600V, UL Listed
WARRANTY:
• Indoor 5 year warranty on parts, materials and workmanship
• Exterior 3 year warranty on parts, materials and workmanship
| Part Number | LSV2XT8USE4806 |
|---|---|
| Manufacturer | Maxlite |
| Watts | 36 Watts |
| Lumens | 3900 |
| Lumens Per Watt | 108 |
| CRI | 82 |
| Color Temperature | 5000 Kelvin |
| Input Voltage | 120V-277V |
| Dimmable | Yes |
| Rated Life | 50,000 hours + |
| Minimum Operating Temperature | -4° F |
| Maximum Operating Temperature | 104° F |
| Dimensions | 50.0" x 6.75" x 4.75" |
| Certifications |  ,  ,  ,  ,  |
| Warranty | 3 Year |
| Specification Sheet | |
| Lead Time | In Stock - Quick Ship |
| UPC Code | 767627944451 |
