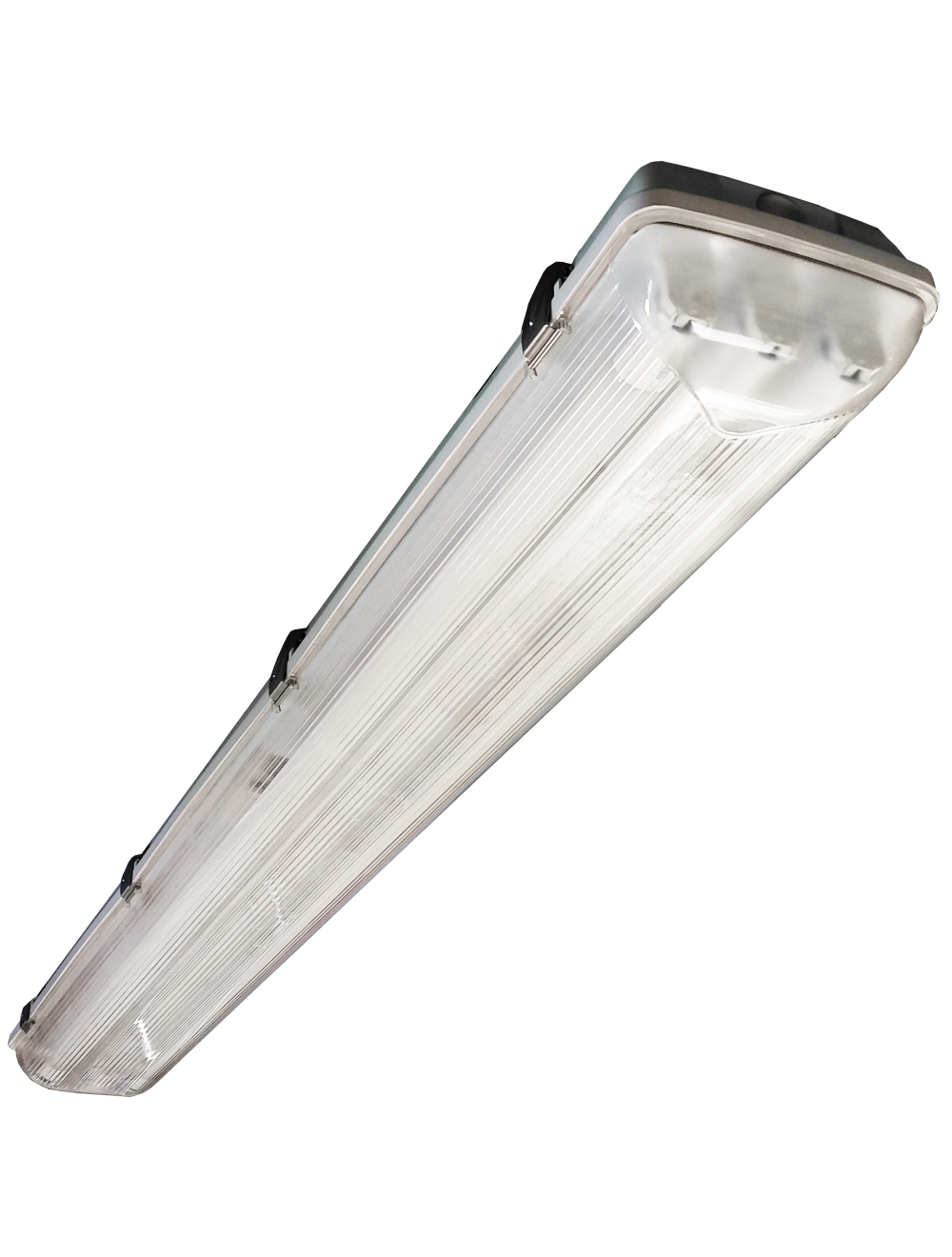

Maxlite LSV3XT8USE4806 3 lamp 4' LED T8 Vapor Tight Fixture 74851
PRODUCT DESCRIPTION:
The MaxLite Lamp Ready Vapor tight series provides Architects, Specifiers, and Buyers with a UL listed fixture engineered to operate the latest single ended LED T8 lamps on the market. Offering classic IP65 ratings, with spec grade Stainless steel latches, these fixtures come pre-wired for single ended operating LED lamps for contractor ready installation as new or remodel fixtures
Maxlite LSV3XT8USE4806 3 lamp 4' LED T8 Vapor Tight Fixture 74851
PRODUCT DESCRIPTION:
The MaxLite Lamp Ready Vapor tight series provides Architects, Specifiers, and Buyers with a UL listed fixture engineered to operate the latest single ended LED T8 lamps on the market. Offering classic IP65 ratings, with spec grade Stainless steel latches, these fixtures come pre-wired for single ended operating LED lamps for contractor ready installation as new or remodel fixtures
FEATURES:
• Stainless Steel spec grade hasps and clips
• Lead wires are 7’ for tandem wiring, eliminating back and end knockouts.
• Sockets are wired in series via non-shunted sockets
• Ceiling or wall mounted
• Surface mount brackets included
CONSTRUCTION:
• Engineered and UL rated to take up to 22w per set of lamp holders
• Pour in place silicone seal provides hermetically sealed envelope for wet environments
• Polycarbonate Grey Housing and clear lens standard.
• Wiring is 18 AWG solid to allow 120-277v operation where lamp specification allows
• Sockets rated to 660w , 600V, UL Listed
WARRANTY:
• Indoor 5 year warranty on parts, materials and workmanship
• Exterior 3 year warranty on parts, materials and workmanship
Part Number | LSV3XT8USE4806 |
---|---|
Manufacturer | Maxlite |
Watts | 54 Watts |
Lumens | 5850 |
Lumens Per Watt | 108 |
CRI | 82 |
Color Temperature | 5000 Kelvin |
Input Voltage | 120V-277V |
Dimmable | Yes |
Rated Life | 50,000 hours + |
Minimum Operating Temperature | -4° F |
Maximum Operating Temperature | 104° F |
Dimensions | 50.0" x 6.75" x 4.75" |
Certifications | , , , , |
Warranty | 3 Year |
Specification Sheet | |
Lead Time | In Stock - Quick Ship |
UPC Code | 767627944468 |
