DESCRIPTION:
The MaxLite “Lamp Ready” Utility Wrap series provides Architects, Specifiers, and Buyers with a UL listed fixture engineered to operate the latest single ended LED T8 lamps on the market. Offering classic prismatic diffuser, with post painted finish, these fixtures come pre-wired for single ended operating LED lamps for contractor ready installation as new or remodel fixtures.
How To Order:
• Choose your optional lamp configuration
• No lamp, you can provide your own single pole LED. If you don't know what single pole is we recommend using our LEDs.
• Choose one of our LEDs. We continually update the LEDs paired with fixtures to provide the newest and most efficient version.

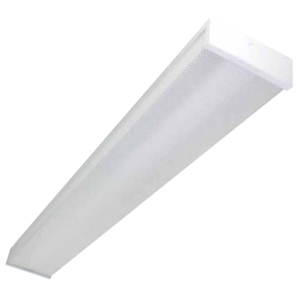

Maxlite LSU4XT8USE4812 LED T8 Lamp Ready Utility Wrap Series 4 lamp 14098811
Description:
The MaxLite “Lamp Ready” Utility Wrap series provides Architects, Specifiers, and Buyers with a UL listed fixture engineered to operate the latest Single/Double ended LED T8 lamps supplied separately. Offering classic prismatic diffuser, with post painted finish, these fixtures come pre-wired for single ended operating LED lamps for contractor ready installation as new or remodel fixtures.
Single/Double ended T8 internal driver lamps (4’) must be purchased separately from Maxlite for this product
Features:
• Lead wires are 7’ for tandem wiring, eliminating back and end knockouts.
• Sockets are wired in series via non-shunted sockets
• Ceiling or wall mounted
• Option “MSO” on/off occupancy sensor available
• Cable kits available for suspended use
Construction:
• Engineered and UL rated to take up to 22w per set of lamp holders
• Damp &indoor rated use.
• Post fab painted housing and prismatic lens standard.
• Wiring IS 18 AWG solid to allow 120-277v operation where lamp specification allows
• Sockets rated to 660w , 600V, UL Listed
WARRANTY:
• Indoor 5 year warranty on parts, materials and workmanship
Part Number | LSU4XT8USE4812 |
---|---|
Manufacturer | Maxlite |
Lumens | Dependent on Lamp |
CRI | Dependent on Lamp |
Color Temperature | 4000 Kelvin, 5000 Kelvin |
Beam Angle | Not Specified |
Input Voltage | 120V-277V |
Rated Life | 50,000 hours + |
Minimum Operating Temperature | -4° F |
Maximum Operating Temperature | 104° F |
Dimensions | 49.0” x 12.3” x 2.8” |
Warranty | 5 Year |
Certifications | , , , , , |
UPC Code | 767627939112 |
Specification Sheet | |
Lead Time | In Stock - Quick Ship |
